锤式破碎机主要适应于各种脆性材料的石料、化工非易燃易爆，非高韧性物料的粉碎作业使用。破碎比例大，生产效率高是锤式破碎机的优势，锤式破碎机可做干湿两种形式破碎，锤式破碎机用于破碎各种中硬度磨蚀型物料，其抗压物料的强度不超过100MPa，含水量小于15%。主要用于煤、盐、白垩、石膏、砖瓦、石灰石等，也可用于破碎纤维结构、弹性的物料，锤式破碎机不仅仅可用于石料生产线、制砂生产线，也可在选矿生产线中替代圆锥式破碎机。锤式破碎机主要可分为卧式破碎，及立式粉碎两种，针对不同使用要求进行订制改装，使用范围广，在选矿、建筑、化工、废旧再利用等多种行业的应用。
Hammer crusher is mainly suitable for the crushing operation of various brittle materials, such as stones, chemical non-flammable and explosive materials, and non-high toughness materials. Large crushing ratio and high production efficiency are the advantages of the hammer crusher. The hammer crusher can be used for dry and wet crushing. The hammer crusher is used to crush various medium-hardness and abrasive materials. The strength of the compressive materials is not Over 100MPa, the water content is less than 15%. Mainly used for coal, salt, chalk, gypsum, bricks, limestone, etc., it can also be used to crush materials with fiber structure and elasticity. The hammer crusher can be used not only for stone production lines, sand production lines, but also for beneficiation production lines. Cone crusher. Hammer crushers can be divided into horizontal crushing and vertical crushing. They can be customized and modified for different use requirements. They have a wide range of applications and are used in various industries such as mineral processing, construction, chemical industry, and waste recycling.
锤式破碎机工作原理Working principle：

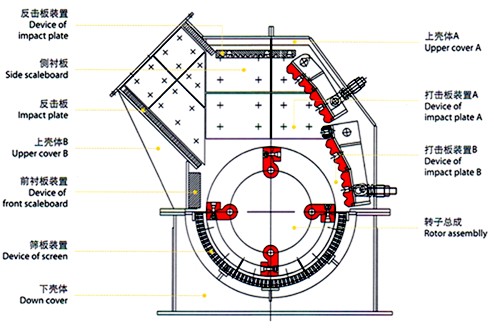

锤式破碎机在工作时电动机带动转子，转子在破碎机腔室内高速旋转，物料从上部给料口进入腔室，物料进入强室内收到高速运动的转子冲击，打碎、剪切，研磨，多重重力下粉碎，在锤式破碎机下部，设有筛板，物料被击碎后落入筛板孔内，经过筛孔排出机体外，可根据对物料粒度的要求来制作筛孔的尺寸大小，小于筛孔的物料排出机体，大于筛孔的的物料继续受到锤头的打击和研磨，直到小于筛孔的孔径后排出机外
When the hammer crusher is working, the motor drives the rotor. The rotor rotates at a high speed in the crusher chamber. The material enters the chamber from the upper feeding port. The material enters the strong chamber and receives the impact of the high-speed moving rotor, breaking, shearing, and grinding. It is crushed under multiple gravity. The lower part of the hammer crusher is equipped with a sieve plate. After being crushed, the material falls into the sieve plate hole and is discharged out of the machine through the sieve hole. The size of the sieve hole can be made according to the requirements of the particle size of the material. , The material smaller than the sieve hole is discharged out of the machine body, and the material larger than the sieve hole continues to be hit and ground by the hammer until it is discharged out of the machine after the hole is smaller than the sieve hole.
锤式破碎机特点Features：
1.工作锤头，采用新工艺铸造，具有耐磨、耐冲击；
2.可据客户要求，调节需要的粒度；
3.锤破机体结构密封，解决了破碎车间的粉尘污染和机体漏灰问题；
4.整体设计造型美观、结构紧凑，易损件少，维修方便等优点，是升级换代产品；
1. The working hammer is cast with a new technology, which is wear-resistant and impact-resistant;
2. According to customer requirements, the required granularity can be adjusted;
3. The hammer breaks the machine body structure to seal, which solves the dust pollution and machine body dust leakage problems in the crushing workshop;
4. The overall design has the advantages of beautiful appearance, compact structure, few wearing parts, and convenient maintenance. It is an upgraded product;

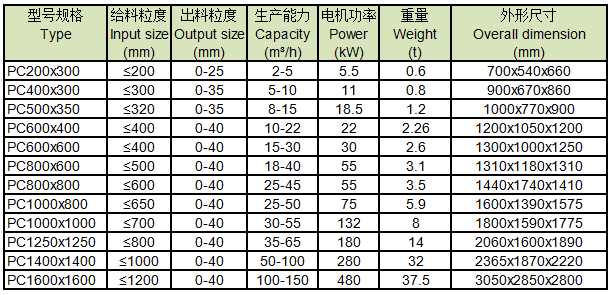

主要技术参数 Main Technical Parameters
