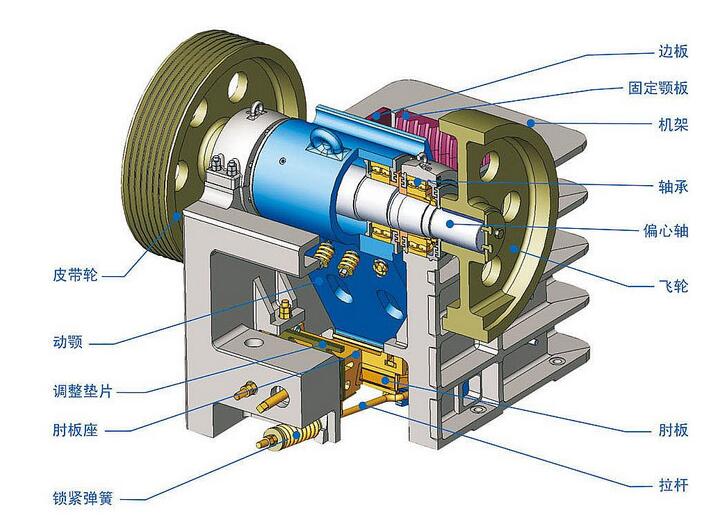

颚式破碎机主要由：固定鄂板、活动鄂板、机架、上下护板、调整座、动鄂拉杆等组成，具有破碎比大、产品粒度均匀、结构简单、维修简便、运营费用低等特点。鄂式破碎机运用于矿山、冶炼、建材、公路、铁路、水利和化学工业等众多部门，破碎强度不过320兆帕的多种物料。
Product description
Jaw crusher is mainly composed of: fixed jaw, movable jaw, frame, upper and lower guard plates, adjusting seat, movable jaw rod, etc. It has features like large crushing ratio, uniform product size, simple structure, simple maintenance, low operating cost, etc. Jaw crushers are used in many sectors such as mining, smelting, building materials, highways, railways, water conservancy and chemical industries, and the crushing strength is only 320 MPa for various materials.
鄂破特点/Features:
1. 噪音低，粉尘少。
2. 破碎比大，产品粒度均匀。
3. 结构简单，工作可靠，运营费用低。
4. 润滑系统安全可靠，部件更换方便，维护保养简单。
5. 破碎腔深且无死角，提高了进料能力与产量。
6. 节能：单机节能15%-30%，系统节能一倍以上。
7. 排料口调整范围大，可满足不同用户的需求。
1. Low noise and less dust.
2. Large crushing ratio and uniform product size.
3. Simple structure, reliable work and low operating cost.
4. The lubrication system is safe and reliable, the parts are easy to replace, and the maintenance is simple.
5. The crushing cavity is deep and no dead ends, which improves the feeding capacity and output.
6. Energy saving: stand-alone energy saving is 15%-30%, and the system energy saving is more than doubled.
7. The adjustment range of the discharge opening is large, which can meet the needs of different users.

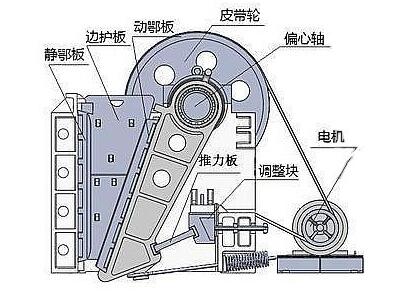

颚式破碎机工作原理：
该系列破碎机工作方式为曲动挤压型，其工作原理是：电动机驱动皮带和皮带轮，通过偏心轴使动颚上下运动，当动颚上升时肘板与动颚间夹角变大，从而推动动颚板向固定颚板接近，与其同时物料被压碎或劈碎，到破碎的目的；当动颚下行时，肘板与动颚夹角变小，动颚板在拉杆，弹簧的作用下，离开固定颚板，此时已破碎物料从破碎腔下口排出。随着电动机连续转动而破碎机动颚作周期运动压碎和排泄物料，实现批量生产。
Working principle:
The working mode of this series of crushers is curved extrusion type. Its working principle is: the motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger. The movable jaw is pushed closer to the fixed jaw, and the material is crushed or smashed at the same time to achieve the purpose of crushing; when the movable jaw goes down, the angle between the toggle and the movable jaw becomes smaller, the movable jaw is on the pull rod, and the action of the spring And leave the fixed jaw. At this time, the crushed materials are discharged from the lower mouth of the crushing cavity. With the continuous rotation of the motor, the crushing motor jaw makes periodic movement to crush and discharge materials, realizing mass production.

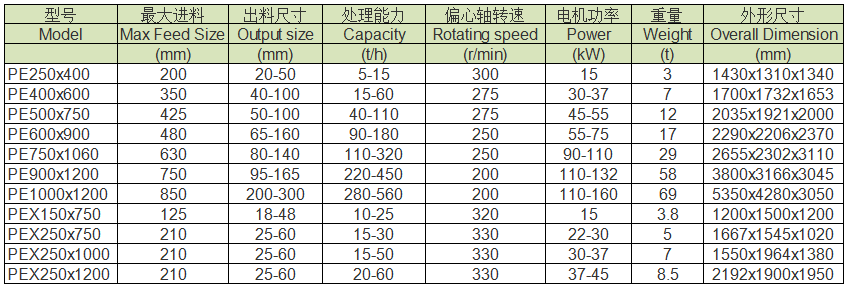

主要技术参数 Main Technical Parameters
